Description

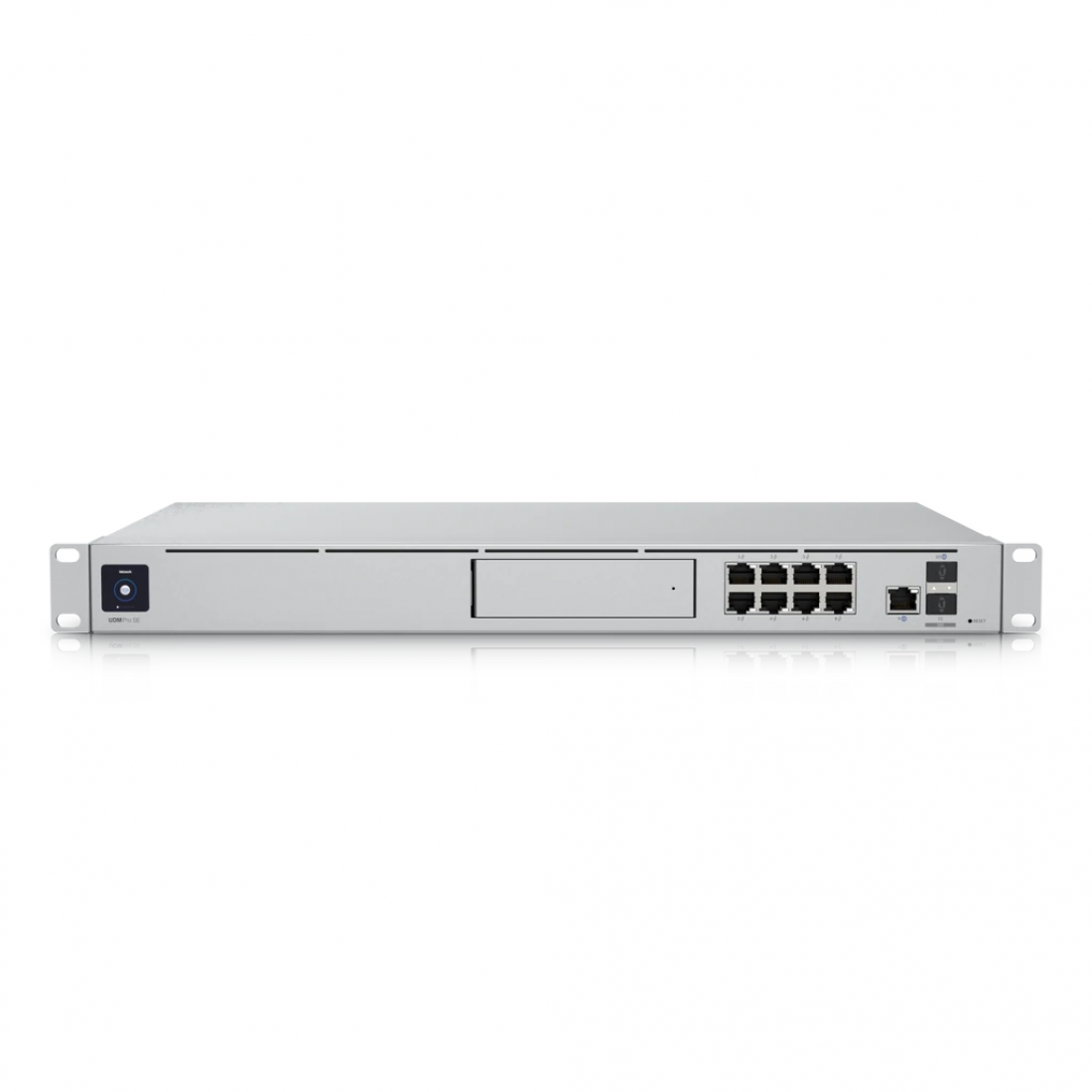

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It’s also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).
Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24″)
Weight 4.95 kg (10.91 lb)
Enclosure materials Aluminium CNC, SGCC steel
Mount material SGCC steel rack mount
Hardware
Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSD
IDS/IPS throughput 3.5 Gbps*
*Measured with iPerf3
Max. power consumption (excluding PoE output) 50W
Power method (1) Universal AC input, 100-240VAC, 4.4A
Max, 50/60 Hz (1) USP-RPS DC input, 52VDC, 3.94A
Power supply AC/DC, Internal, 240W
Supported voltage range 100 to 240VAC
Management interfaces Ethernet
Bluetooth
Networking interfaces (1) WAN: 2.5 GbE RJ45 port
(8) LAN: 1 GbE RJ45 ports
SFP+ interfaces (1) WAN: 10G SFP+
(1) LAN: 10G SFP+
PoE interfaces (2) PoE+ (pair A 1, 2+; 3, 6-)
(6) PoE (pair A 1, 2+; 3, 6-)
Max. PoE wattage per port by PSE PoE 15.4W
Max. PoE wattage per port by PSE PoE+ 30W
Voltage range PoE mode 44 to 57V
Voltage range PoE mode 50 to 57V
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
LCM display (1) 1.3″ touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading
Button Factory reset
Operating temperature -10 to 40° C (14 to 104° F)
Operating humidity 5 – 95% noncondensing
Certifications CE, FCC, IC
LEDs
Ethernet White: link/activity
SFP+ White: link/activity
HDD White: disk activity
Amber: disk error
RPS Blue: ready
